Saft

11 products

Showing 1 - 11 of 11 products

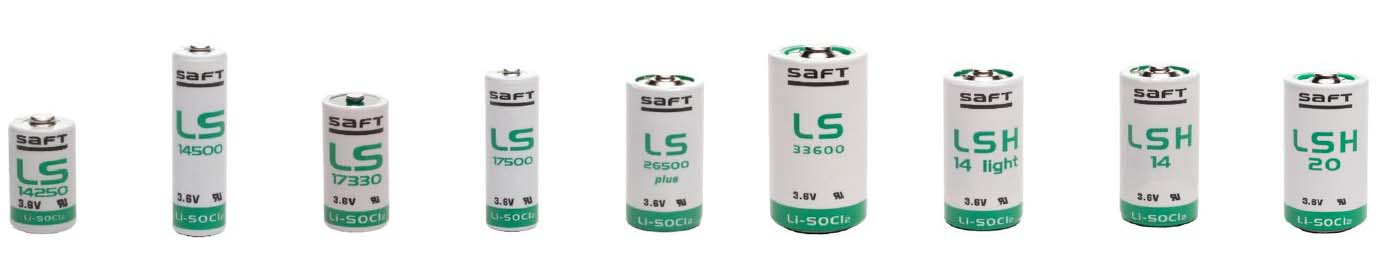

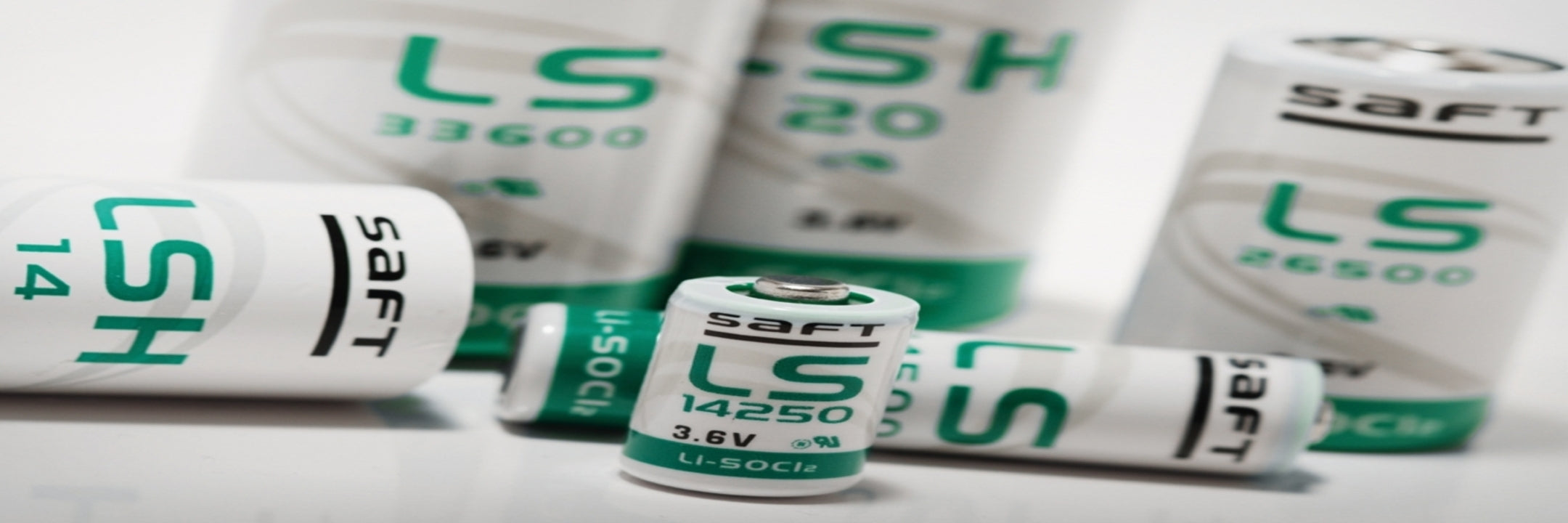

Saft’s LS, LSH and LSP cylindrical primary lithium cells ranges, all based on Lithium-Thionyl chloride (Li-SOCl2) chemistry perfectly suit high-energy and high-voltage requirements in a wide range of temperatures.

Customization:
We offer custom battery pack assemblies using Li-SOCl₂ cells, including PCM/PCBA protection, wiring, connectors, and mechanical housing to meet specific device requirements.

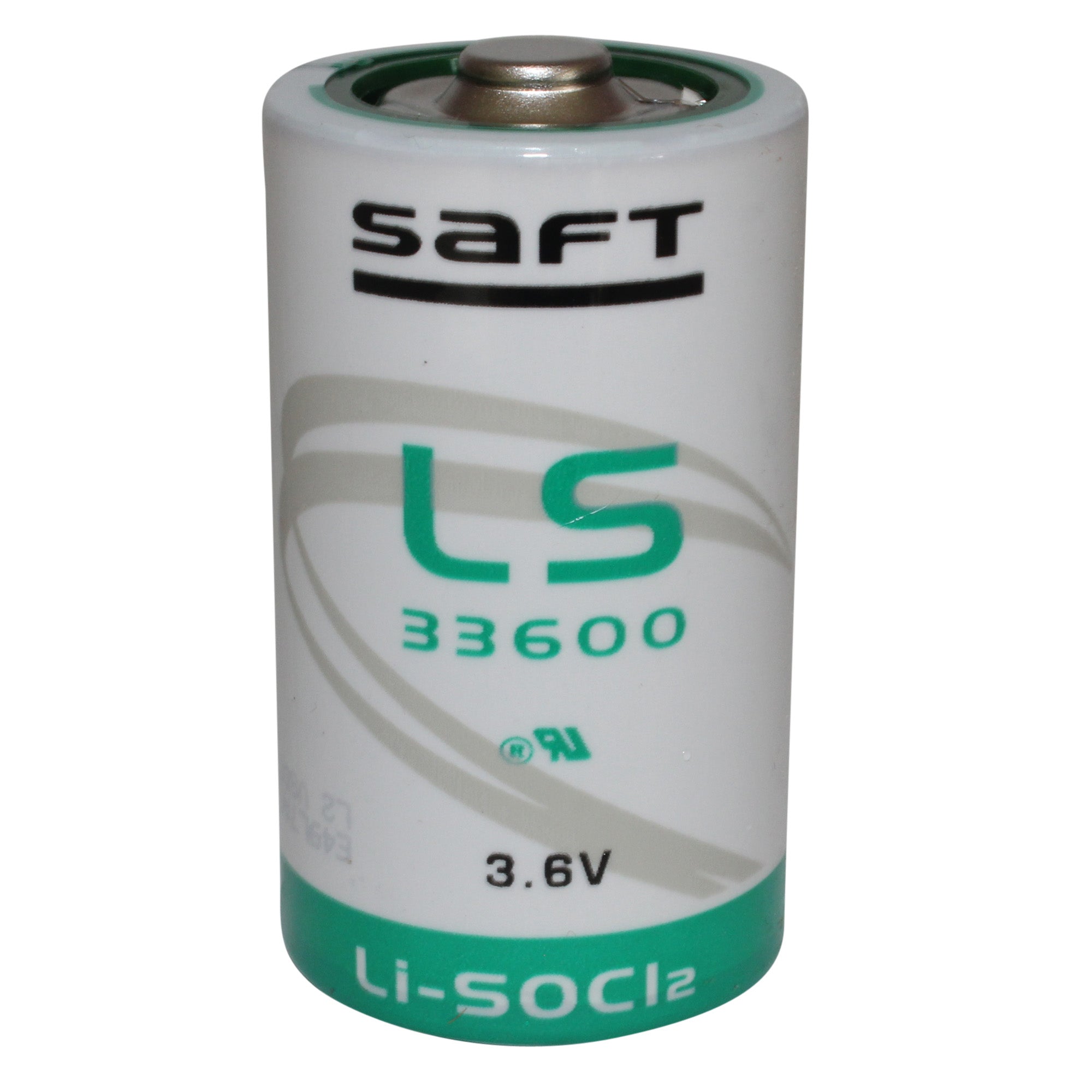

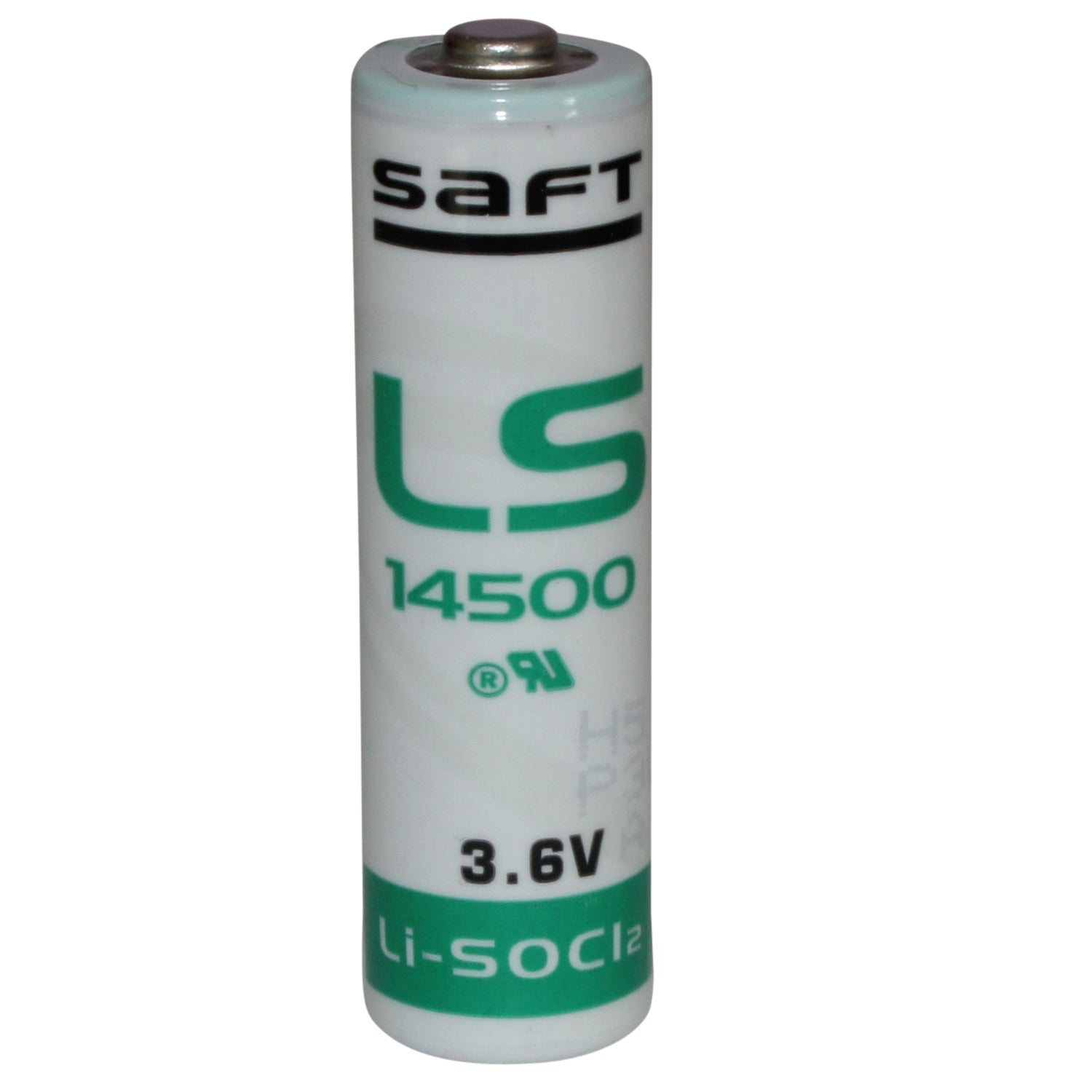

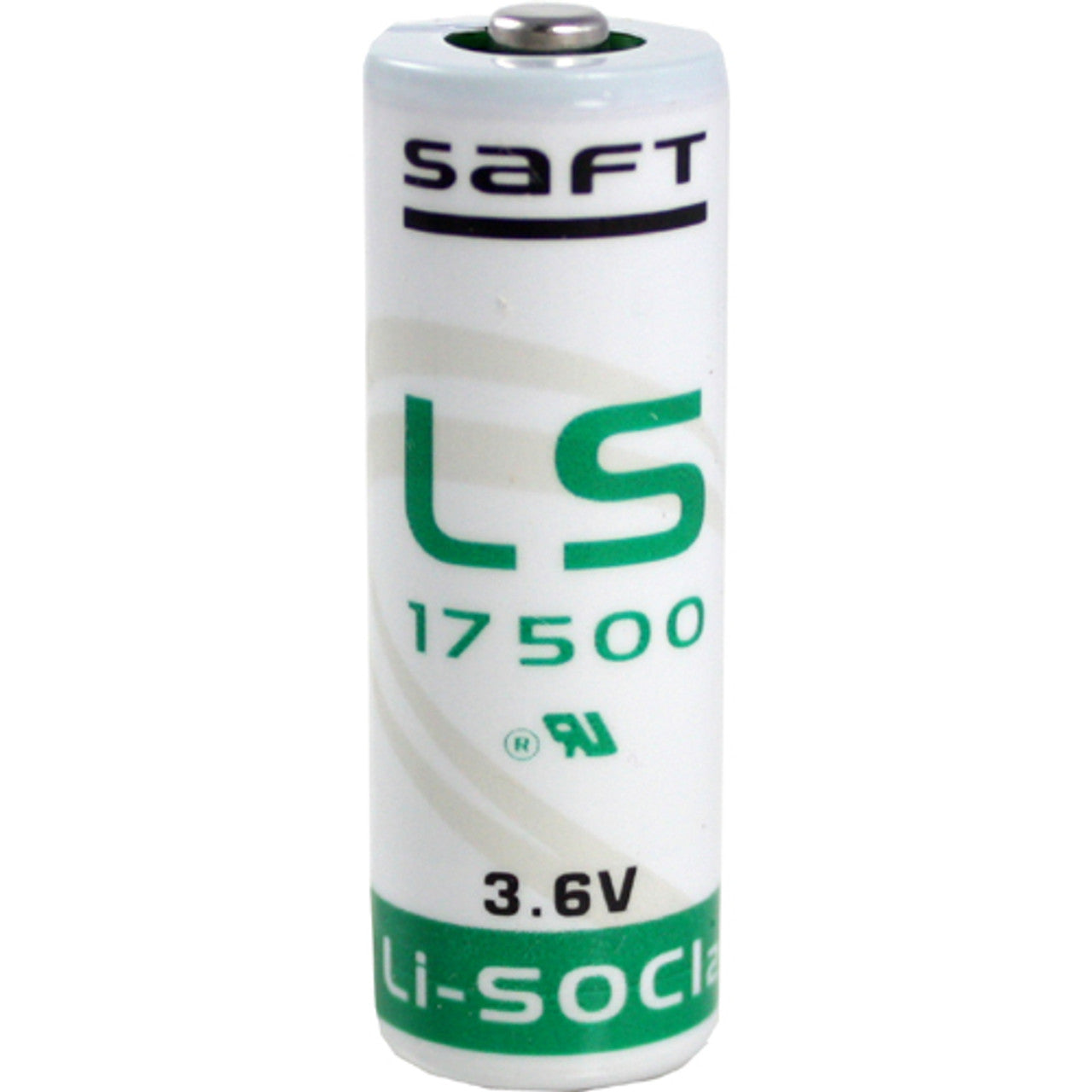

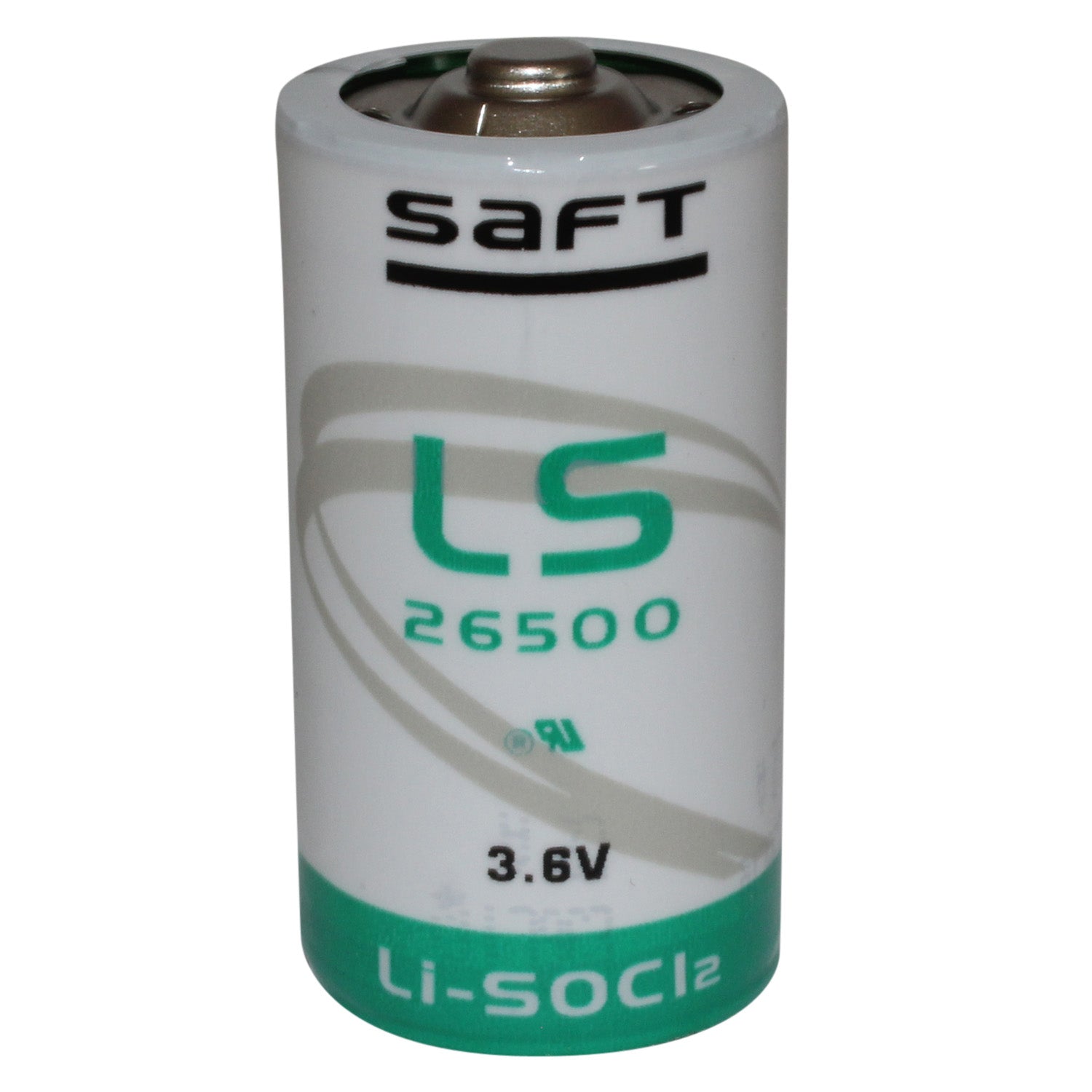

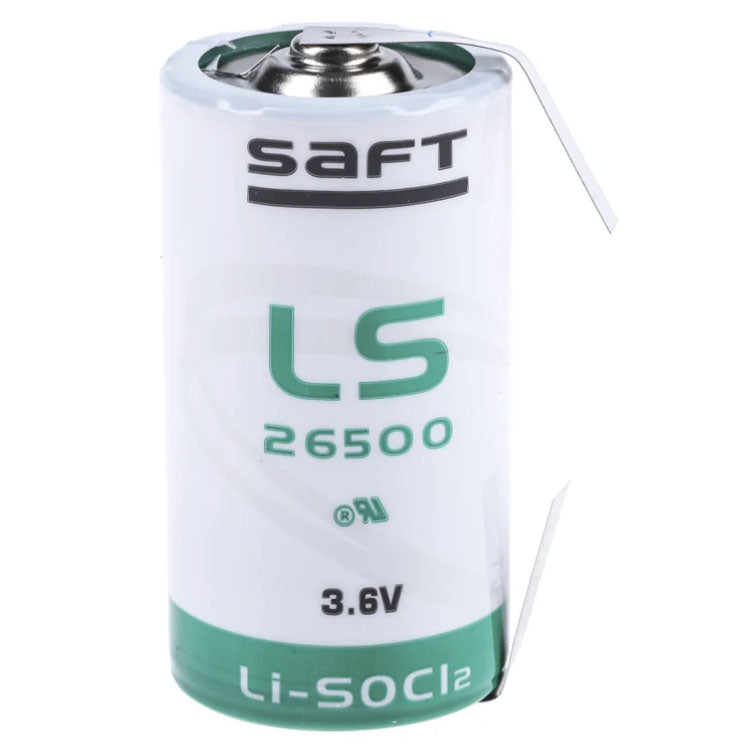

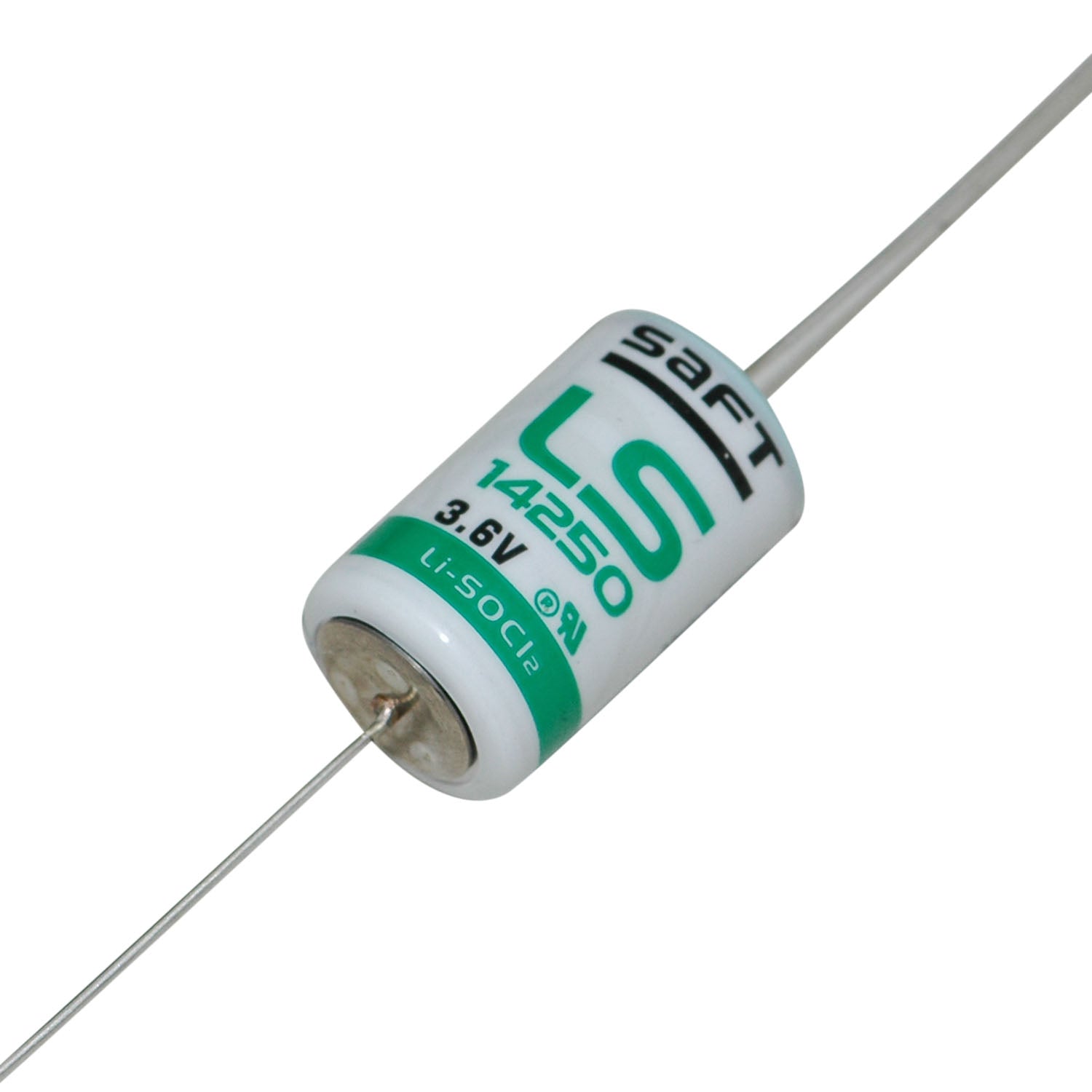

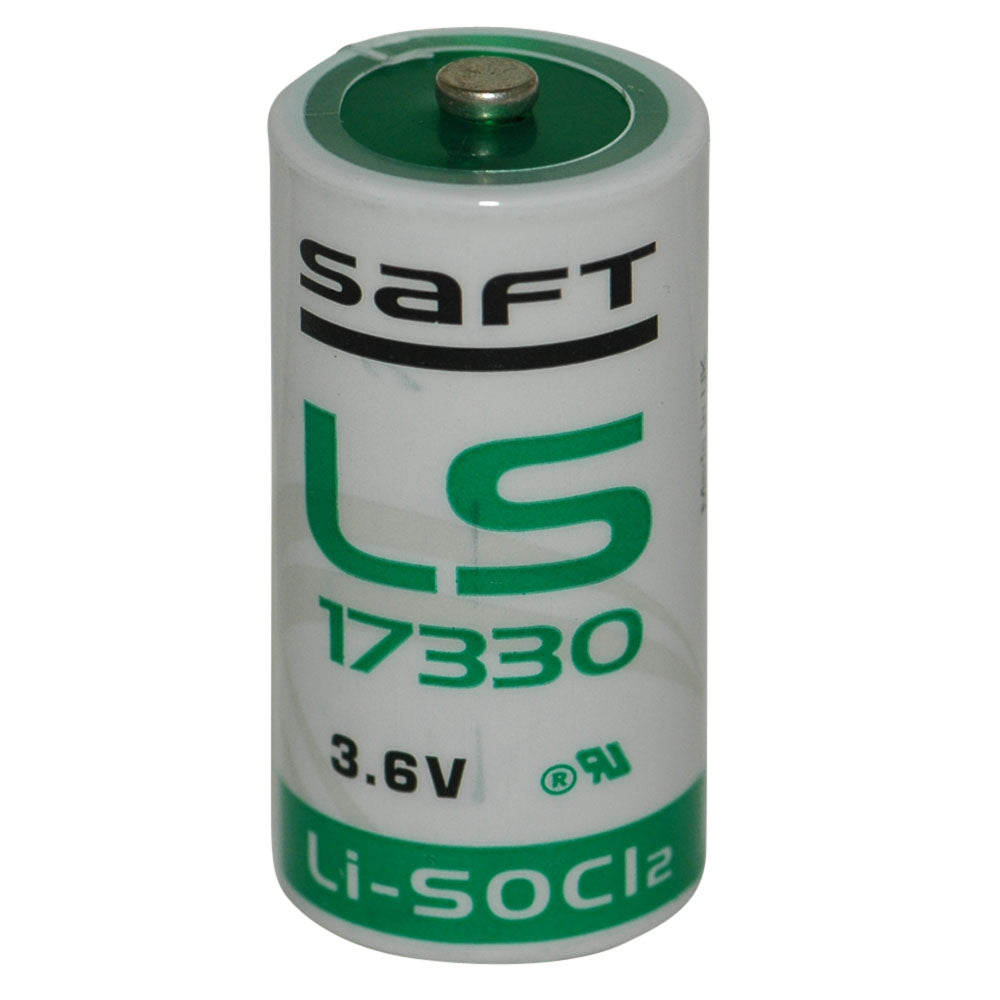

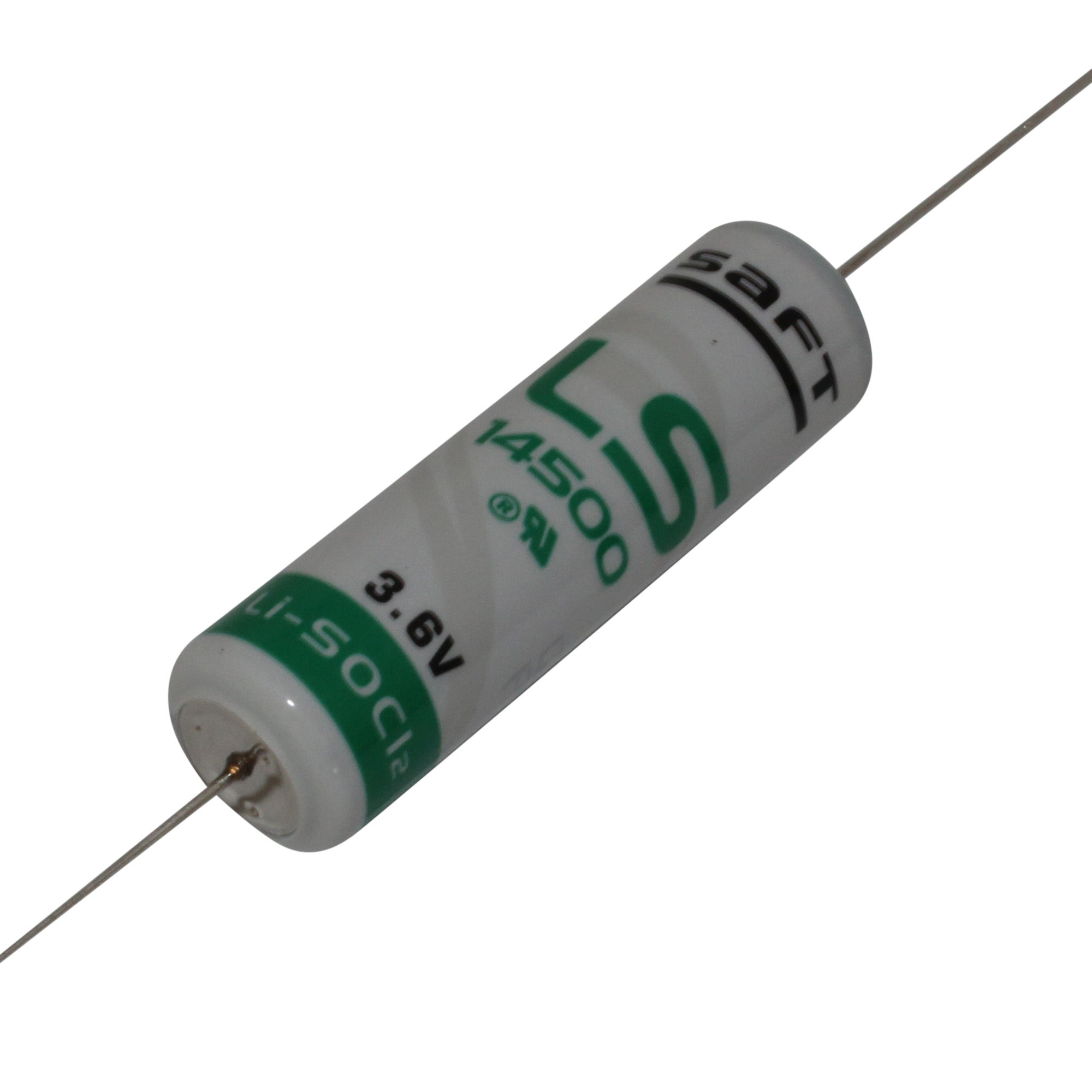

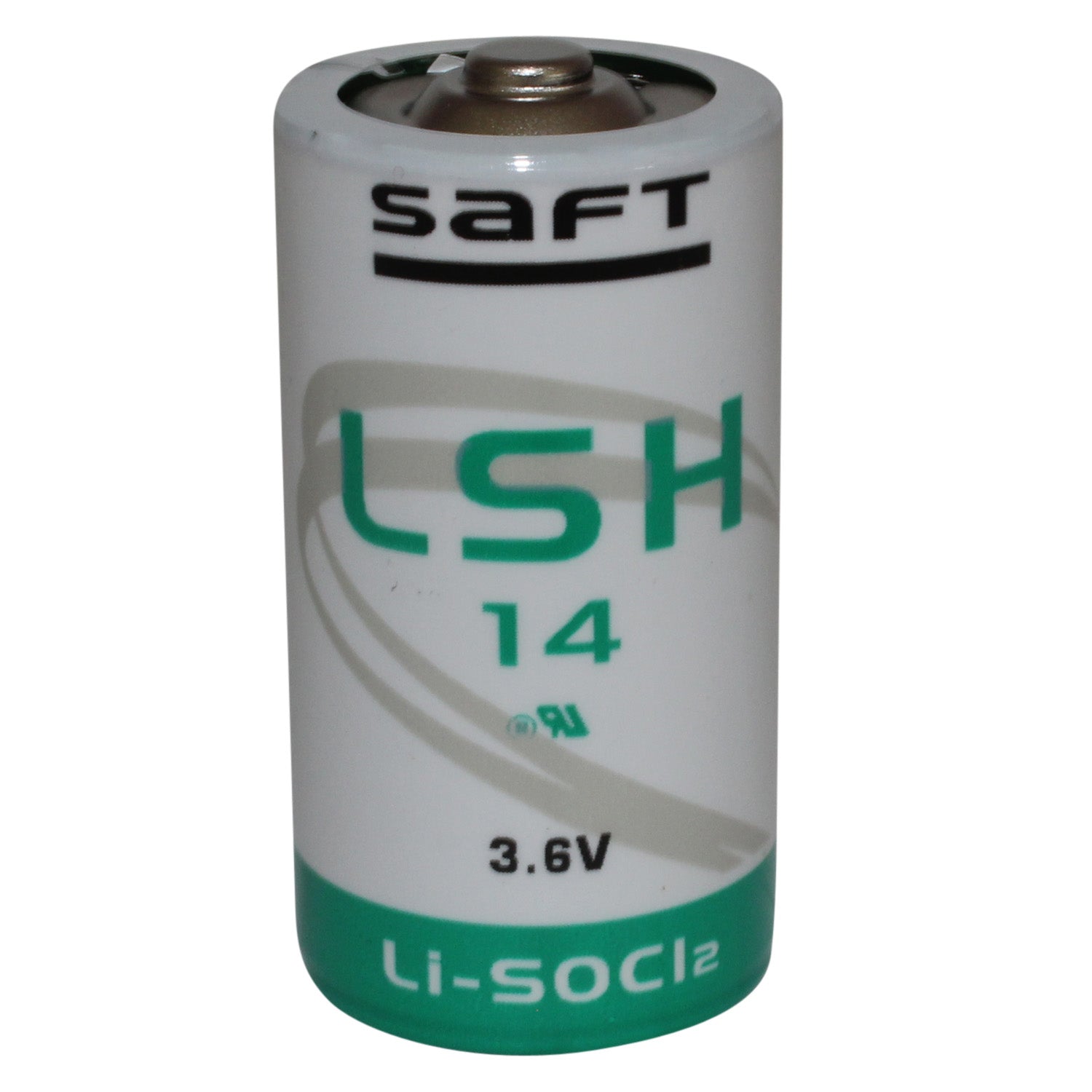

Model Number	LS14250	LS14500	LS 17330	LS 17500	LS 26500	LS 33600	LSH 14	LSH 20
Cell size	1/2AA	AA	2/3 A	A	C	D	C	D
Cell construction	Bobbin	Bobbin	Bobbin	Bobbin	Bobbin	Bobbin	Spiral	Spiral
Nominal voltage	3.6 V	3.6V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Nominal capacity	1.2 Ah	2.6Ah	2.1 Ah	3.6 Ah	8.5 Ah	17.0 Ah	5.8 Ah	13.5 Ah
Max. continuous current	35 mA	50 mA	25 mA	100 mA	150 mA	250 mA	1.3 A	1.8 A
Max. pulse discharge rate	0.1 A	0.25 A	0.12 A	0.25 A	0.3 A	0.4 A	2.0 A	4.0 A
Max. outside diameter	14.62 mm	14.62 mm	16.5 mm	17.16 mm	26.0 mm	33.3 mm	26.0 mm	33.3 mm
Max. height	25.13 mm	50.28 mm	33.4 mm	50.77 mm	50.4 mm	61.3 mm	50.4 mm	61.3 mm
Typical weight	9 g	17 g	14.4 g	22 g	47 g	90 g	51 g	100 g
Operating temperature range	- 60 / + 85°C	- 60 / + 85°C	- 60 / + 85°C	- 60 / + 85°C	- 60 / + 85°C	- 60 / + 85°C	- 60 / + 85°C	- 60 / + 85°C
